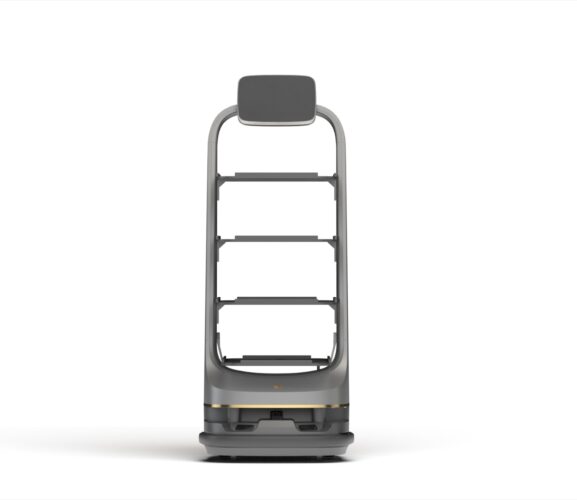

Delivery X1

Highlights

Unique to X1 Pro

Sensing

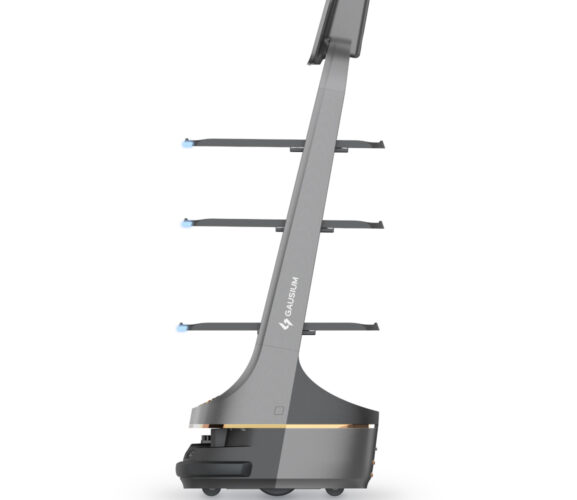

X1 Pro

LiDAR, 3D Camera, Weight Sensor, LED Indicator Light

Delivery X1 / X1 Pro

Dimensions

X1

X1 Pro

Length

515 mm 20.3 in

515 mm 20.3 in

Width

523 mm 20.6 in

531 mm 20.9 in

Height

1,286 mm 50.6 in

1,310 mm 51.6 in

Unladen Weight

35 kg 77 lb

38 kg 84 lb

Tray Size (L*W)

400*502 mm 15.7*19.8 in

397*495 mm 15.6*19.5 in

Load Capacity

10 kg *3 22 lb *3

10 kg *3 22 lb *3

Screen Size

7 in

10 in

Movement

X1 / X1 Pro

Gradeability

Max. Moving Speed

1.2 m/s 2.7 mph

Min. Passable Width

650 mm 25.6 in

Min. Turn-around Width

700 mm 27.6 in

Braking Distance

40 mm 1.6 in

Electrical

Battery Type

Lithium Iron Phosphate

Battery Capacity

20 Ah

Rated Voltage

29.4 VDC

Max. Output Power

230 W 0.3 hp

Charging Time

4.5 hours

Uptime

14 - 20 hours

Sensing

X1

LiDAR, 3D Camera

Note: The specifications are derived from Gausium's test results. The actual performance may vary in specific applications.
